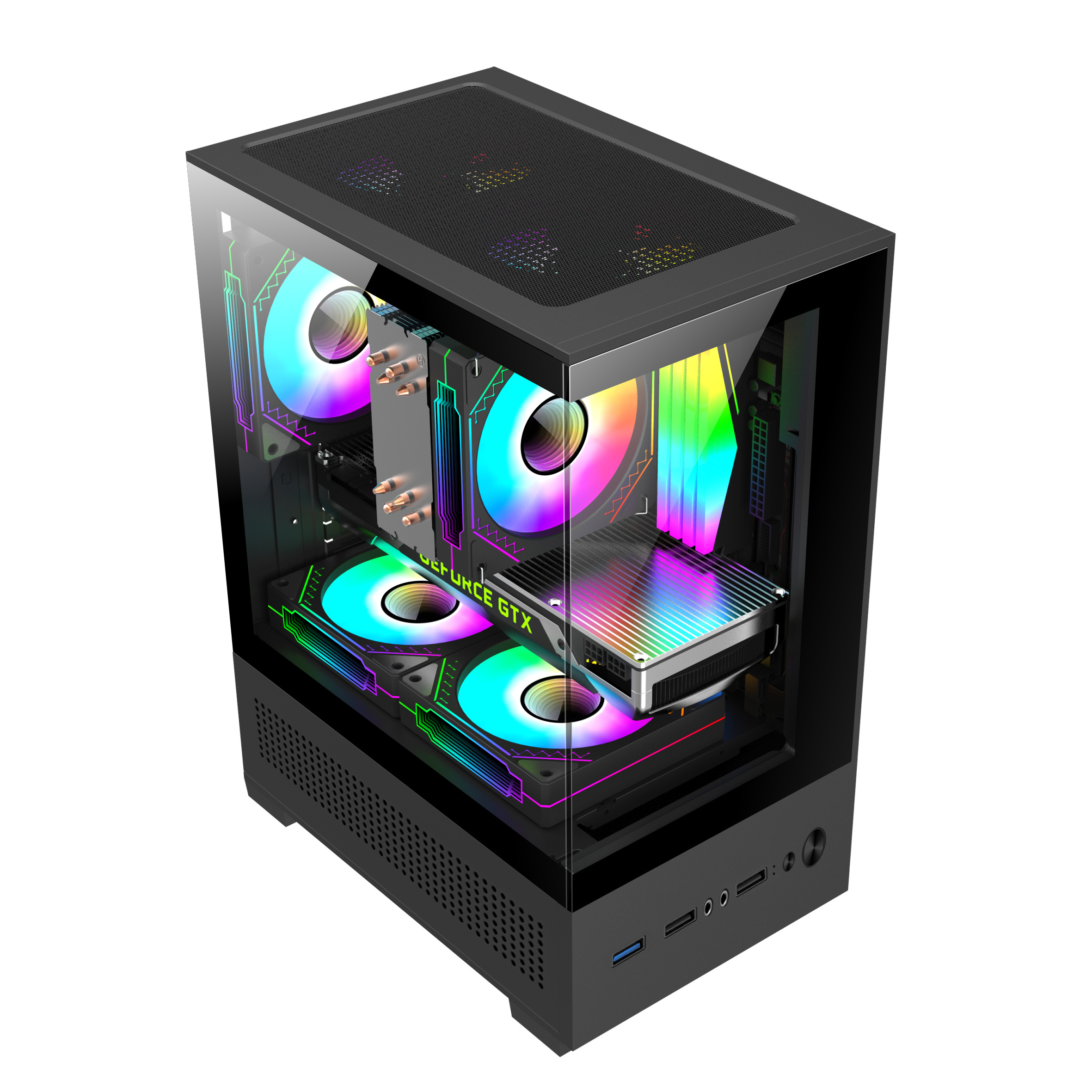

PRODUCT PARAMETER |
|
|
M/B :M-ATX/ITX |
|
|
POWER SUPPLY: Standard ATX power supply (bottom position) |
|
|
HDD/SSD:1*HDD+1*SSD |
|
|
FAN: TOP :2*120MM (option);rear:1*120mm (option); PSU Cover:2*120mm (option) |
|
|
PCI : 4 pcs |
|
|
CPU height : max 167mm |
|
|
GPU length : Max 270mm |
|
|
I/O PORT : 2*USB2.0+1*USB3.0 with HD auido ,Power switch,reset switch, fan /LED switch |
|
|
Cable trough reserved on the back of the chassis (easy topline) |
|
|
MATERIAL :0.35MM SPCC front panel,side panel ,both sides :3mm tempered glass |
|
|
STRUCTURE SIZE ：D280*W190*H375MM |
|
|
PRODUCT SIZE ：D290*W190*H388MM |
|
|
CARTON SIZE ：D425*W235*H340mm(K=K STRONGER 160G） |
|
|
QTY/ 40HQ=1950 SETS |
|
